Project Haystack Data Source

The Project Haystack data source connects Mango to any system that implements the Project Haystack HTTP REST API. Project Haystack is an open-source initiative that standardizes semantic tagging and data modeling for building automation, energy, and IoT systems. By using Haystack's tag-based data model, Mango can discover and read points from diverse building management systems without requiring protocol-specific configuration for each one.

This data source is particularly useful when integrating with Haystack-compatible platforms such as SkySpark, FIN Framework, Niagara (with a Haystack connector), or any other BAS/BMS that exposes a Haystack REST API. Mango queries the remote system's point database using Haystack filter expressions, creates corresponding data points, and polls for updated values on a configurable schedule.

Overview

Property	Value
Module	mangoAutomation-Haystack
Protocol	Project Haystack (HTTP REST API)
Direction	Polling
Typical Use	Integrating with Haystack-compatible BAS/BMS systems for cross-platform data aggregation

Project Haystack defines a standard vocabulary of tags (e.g., site, equip, point, temp, air, sensor) that describe what data represents rather than how it is communicated. This semantic layer allows Mango to discover points by their meaning ("all temperature sensors on floor 2") rather than by protocol-specific addresses.

Common deployment scenarios include:

• Multi-vendor BAS integration -- aggregating data from multiple Haystack-compatible building systems into a single Mango instance for unified dashboards and analytics.
• SkySpark interoperability -- reading historical and real-time data from SkySpark for visualization in Mango's UI or for triggering Mango-based alarms and automations.
• Campus-wide data collection -- connecting to Niagara stations with Haystack connectors across a campus to create a single pane of glass for facility management.
• Energy analytics -- pulling meter and sub-meter data from Haystack-tagged systems for energy reporting and demand response.

Prerequisites

Before you begin, make sure you have:

• The mangoAutomation-Haystack module installed on your Mango instance.
• Network connectivity (HTTP or HTTPS) from the Mango server to the target Haystack server.
• The base URL of the Haystack API endpoint (e.g., https://skyspark.example.com/api/demo/).
• Valid authentication credentials for the Haystack server (username and password, or API token).
• Familiarity with the Haystack filter syntax for discovering points (see Haystack Filters).

Data source configuration

Creating the data source

1. Navigate to Data Sources in the Mango menu.
2. Click New and select Haystack from the data source type list.

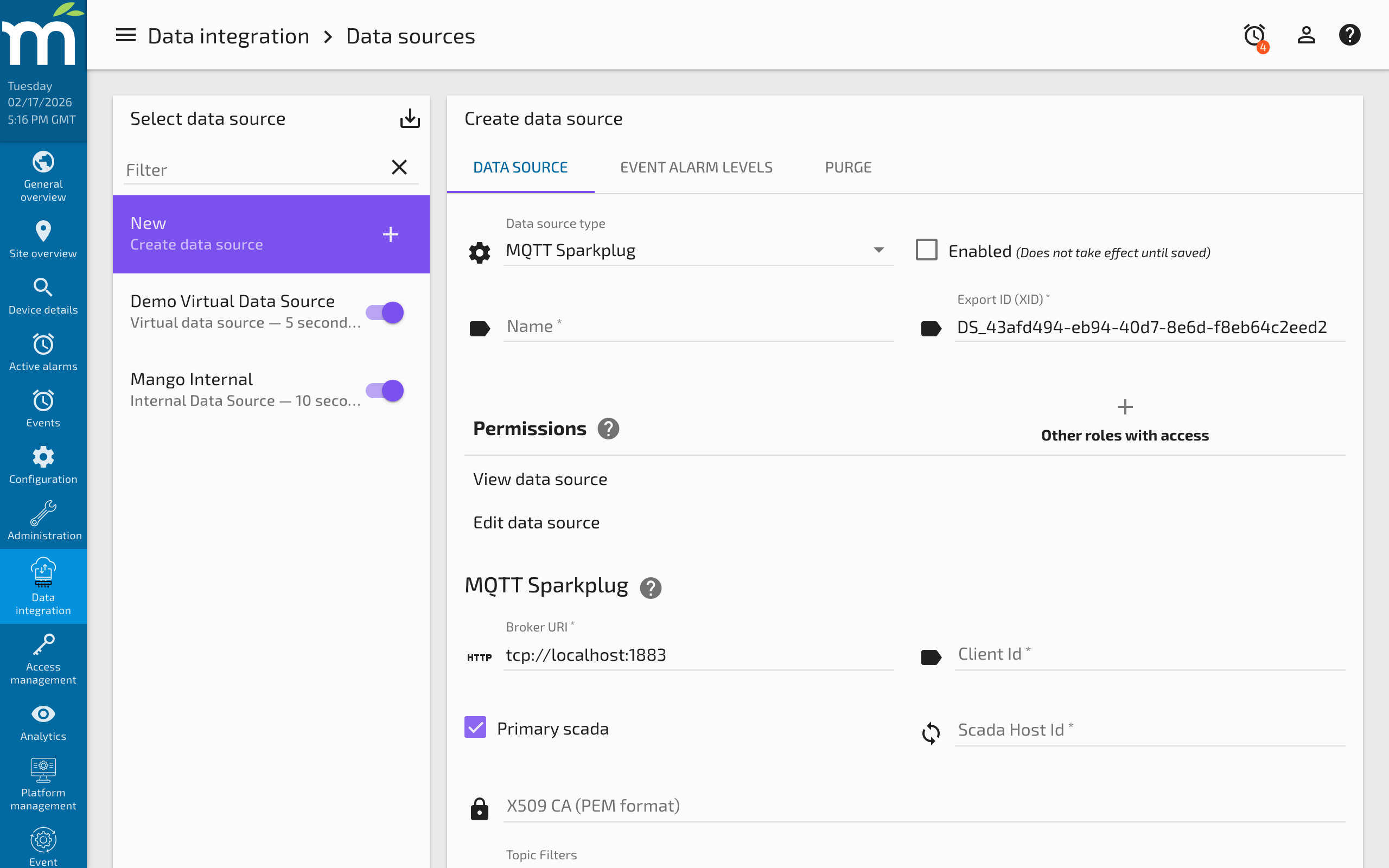

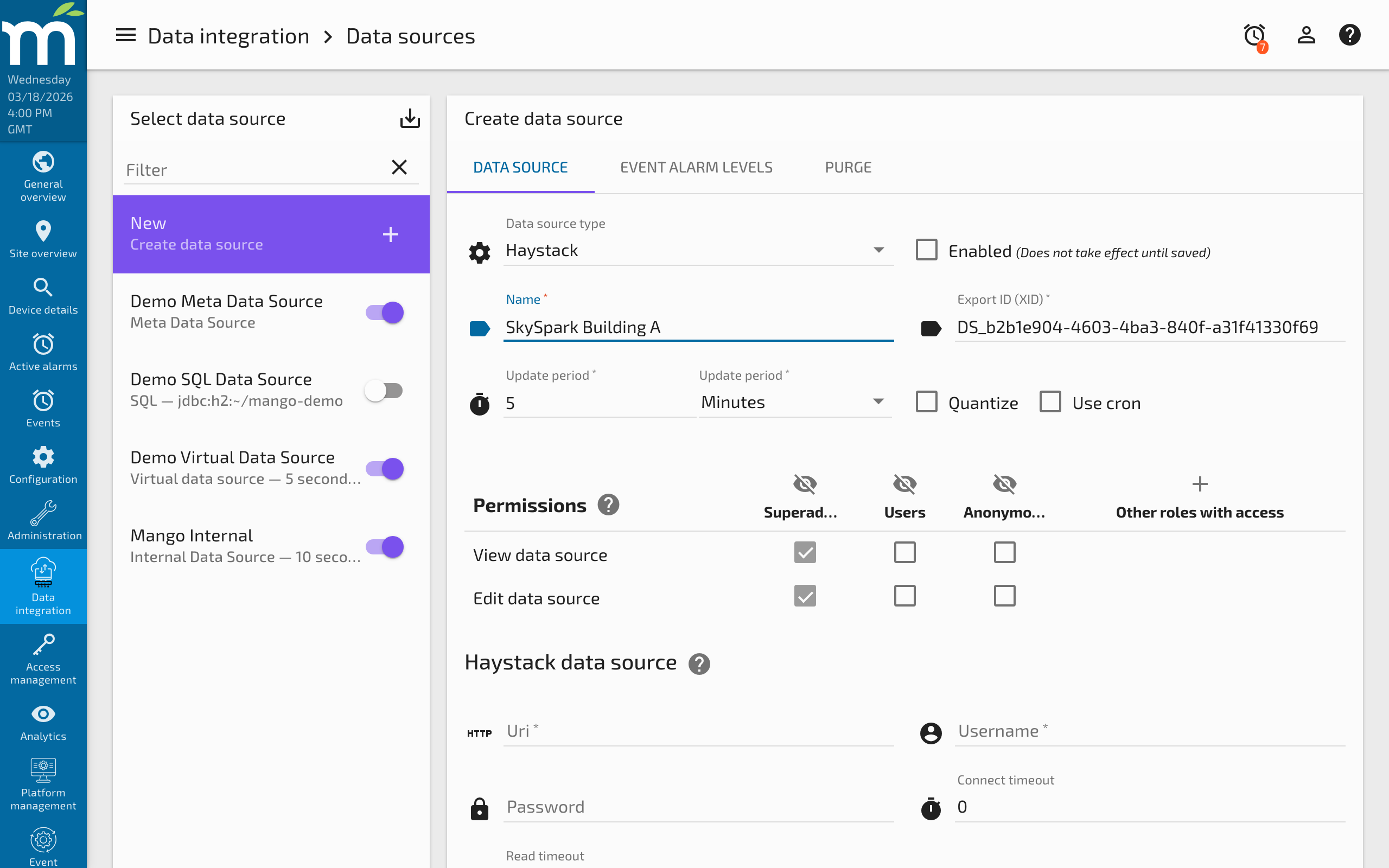

3. Enter a descriptive Name (e.g., "SkySpark Building A").
4. Configure the connection and polling settings described below.
5. Click Save to create the data source.

Connection settings

Parameter	Type	Default	Description
serverUrl	String	""	The base URL of the Haystack REST API. Must end with a trailing slash. Example: https://skyspark.example.com/api/demo/.
username	String	""	Username for authenticating with the Haystack server.
password	String	""	Password for authenticating with the Haystack server. Stored encrypted in the Mango database.
authMethod	Enum	SCRAM	Authentication method. Options: SCRAM (standard Haystack auth), BASIC (HTTP Basic Auth), NONE (no authentication). Most Haystack servers use SCRAM.
connectTimeout	Integer	30000	Maximum time in milliseconds to wait for a connection to the server.
readTimeout	Integer	60000	Maximum time in milliseconds to wait for a response from the server after connecting.

Polling settings

Parameter	Type	Default	Description
updatePeriodType	Enum	MINUTES	Time unit for the polling interval.
updatePeriods	Integer	1	Number of time units between polls. Each poll sends a read request to the Haystack server for all configured points.
quantize	Boolean	false	Align poll times to period boundaries.

Testing the connection

After configuring the connection settings, click Test connection to verify that Mango can reach the Haystack server and authenticate successfully. A successful test displays the server's about information, including the Haystack version and project name.

Point configuration

Discovering points

The Haystack data source uses Haystack filter expressions to discover points on the remote server. Filters are powerful query expressions that match records based on their tags.

1. With the Haystack data source open, navigate to the Points section.
2. Enter a Haystack filter in the discovery field.
3. Click Discover points to query the remote server.
4. The matching points are displayed with their Haystack tags, names, and current values.
5. Select the points you want to add and click Add selected points.

Filter syntax examples

Filter Expression	Matches
point	All records tagged as points
point and temp	All temperature points
point and temp and air and sensor	Air temperature sensor points
point and elec and meter	Electrical meter points
point and siteRef==@site-a	All points belonging to site "site-a"
point and equipRef==@ahu-1	All points on equipment "ahu-1"
point and his	All points with historical data
point and curVal > 72	Points with current value above 72

Filters support and, or, not, comparison operators (==, !=, <, >, <=, >=), and nested expressions with parentheses. Tag references use the @ prefix for Haystack IDs.

Point settings

Parameter	Type	Default	Description
haystackId	String	""	The Haystack record ID (@id tag) of the remote point. Automatically populated during discovery.
haystackFilter	String	""	The filter used to discover this point (for reference only).
dataType	Enum	NUMERIC	The Mango data type for the point. Inferred from the Haystack kind tag during discovery but can be overridden.
settable	Boolean	false	Whether Mango can write values back to the Haystack server using the pointWrite operation. The remote point must support writes.
readMode	Enum	CUR_VAL	How to read point values. CUR_VAL: read the current value via the read operation. HIS_READ: read the most recent historical value via hisRead.
tags	Map	{}	The Haystack tags associated with this point, imported during discovery. Tags are stored as metadata and can be used for organizing points in Mango.

Writing values

For settable points, Mango uses the Haystack pointWrite operation to send values to the remote system. The write includes a priority level that maps to the Haystack 16-level priority array:

Mango Write Level	Haystack Level	Typical Use
Default (16)	16 (default)	Normal operator override
Emergency (1)	1 (life safety)	Emergency overrides
Auto (8)	8 (BAS override)	Automated control logic

History synchronization

The Haystack data source can import historical data from the remote server using the hisRead operation. This is useful for backfilling data when connecting to an existing Haystack system.

1. Select one or more points in the point list.
2. Click Import history and specify the date range.
3. Mango requests the historical data from the Haystack server and inserts it into the local point value store.

Note that history import is a one-time operation, not continuous synchronization. For ongoing data collection, use the standard polling mechanism with readMode set to CUR_VAL.

Examples

Example 1: Connecting to SkySpark

Integrate Mango with a SkySpark instance to read all AHU supply air temperature points.

1. Create a Haystack data source with the SkySpark API URL: https://skyspark.example.com/api/demo/.
2. Set authentication to SCRAM with valid credentials.
3. Test the connection to verify connectivity.
4. In point discovery, enter the filter: point and air and temp and supply and sensor.
5. Click Discover points -- SkySpark returns all matching supply air temperature sensors.
6. Select the desired points and click Add selected points.
7. Set the polling interval to 1 minute.
8. Enable the data source.

Mango now polls SkySpark every minute for the current values of all configured supply air temperature points.

Example 2: Multi-site energy metering

Aggregate electrical meter data from three Niagara stations, each with a Haystack connector.

1. Create three Haystack data sources, one per Niagara station.
2. For each, enter the Niagara Haystack API URL (e.g., https://niagara-bldg-a:443/haystack/).
3. Discover points using the filter: point and elec and energy and meter.
4. Add the energy meter points from each station.
5. In Mango, create a calculated point that sums the three meters for a campus total.

Troubleshooting

Symptom	Cause	Solution
"Authentication failed" or 401 error	Wrong credentials, wrong auth method, or account locked	Verify username and password. Try switching authMethod between SCRAM and BASIC. Check that the account is not locked on the Haystack server.
"Connection refused" or timeout	Server unreachable, wrong URL, firewall blocking	Verify the server URL is correct and accessible from the Mango host. Test with curl or a browser. Check firewall rules.
Discovery returns no points	Filter too restrictive, no matching points, or empty project	Broaden the filter (try just point). Verify the Haystack server has data in the target project. Check that the API URL includes the correct project name.
"Unknown filter function" or parse error	Invalid filter syntax	Review the Haystack filter reference. Ensure tag names are spelled correctly and operators are valid. Use parentheses to clarify complex expressions.
Points discovered but values are null	Point has no current value (curVal), or readMode mismatch	Check if the point has a current value on the Haystack server. If the server only provides historical data, set readMode to HIS_READ.
SSL certificate errors	Self-signed or untrusted certificate on Haystack server	Import the server's CA certificate into the Mango JVM truststore using keytool. Or configure Mango's mango.properties to trust the certificate.
Write operations fail	Remote point not writable, wrong priority level, or permission denied	Verify the point supports writes on the Haystack server. Check that the authenticated user has write permissions.
Slow polling with many points	Large number of points read individually	Batch reads are used automatically, but very large point counts (1000+) may still be slow. Increase the polling interval or split points across multiple data sources.
