Import and export

Mango's import/export feature lets you extract your entire system configuration as JSON and load it back into the same or a different Mango instance. This is the primary mechanism for migrating configuration between environments, creating configuration backups, and making bulk changes to data sources, points, and other system objects.

This page covers JSON configuration import/export. For bulk data point value import, see the bulk data import documentation.

Overview

The import/export system works with Mango's configuration objects -- data sources, data points, event detectors, event handlers, users, permissions, and more. It does not export historical point value data, which is stored separately in the time-series database.

Every exportable object in Mango has an XID (export ID), a unique string identifier that stays consistent across imports and exports. When you import a JSON file, Mango matches objects by XID:

• If an object with that XID already exists, it is updated with the imported values.
• If no object with that XID exists, a new object is created.
• Objects in the target system that are not in the import file are left unchanged.

This XID-based matching makes it safe to perform partial imports without affecting unrelated configuration.

What can be exported

The following object types are available for export:

Object type	Description	Dependencies
Data sources	Connection settings, polling intervals, and protocol configuration	None
Data points	Point locator settings, logging, text renderers, chart renderers	Requires the parent data source
Event detectors	High/low limits, state detectors, no-update detectors	Requires the parent data point
Event handlers	Email handlers, set-point handlers, script handlers	References event detector XIDs
Users	Usernames, roles, permissions, home URLs	References permission XIDs
Permissions	Role definitions and permission grants	None
Mailing lists	Email distribution lists for event handler notifications	References user XIDs
Publishers	Outbound data publishing configuration (HTTP, MQTT, etc.)	References data point XIDs
JSON data	Arbitrary JSON key-value stores used by dashboards and scripts	None
System settings	Global settings such as email configuration, point hierarchy	None
Virtual serial ports	Software-defined serial port pairs for testing and bridging	None

Exporting configuration

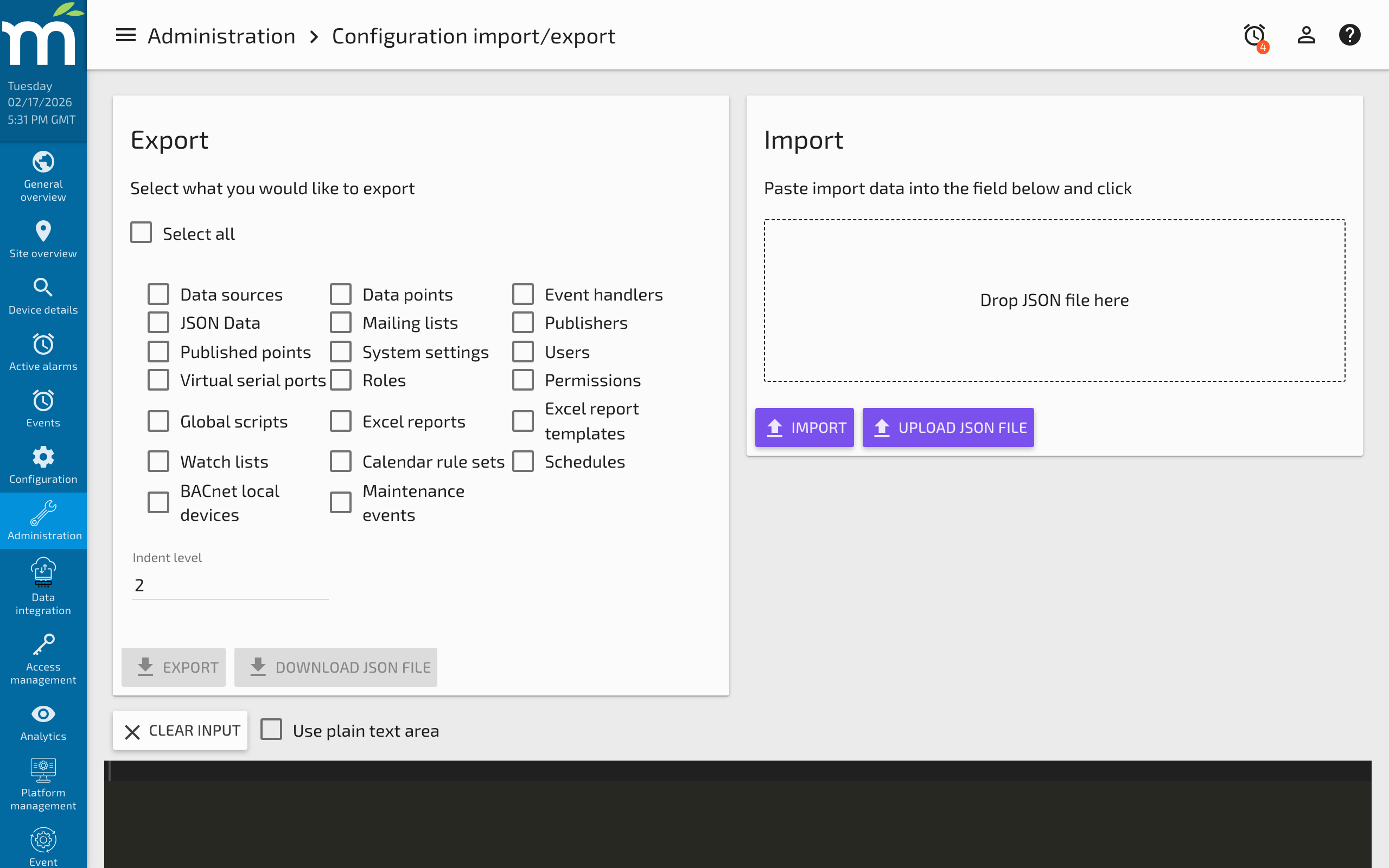

Step 1: Open the import/export page

Navigate to Administration > Import/Export in the Mango UI.

Step 2: Select items to export

The export section lists all available object types with checkboxes. Select the types you want to include in the export. You can:

• Select all -- Exports a complete configuration snapshot.
• Select individual types -- Exports only the selected object types. Use this for targeted exports (e.g., exporting only data sources and their points).

Step 3: Download the JSON

Click Export to generate the JSON. The export appears in a text area where you can copy it to the clipboard, or click Download to save it as a .json file.

The exported JSON is a single object with top-level keys for each object type:

{
  "dataSources": [
    {
      "xid": "DS_modbus_01",
      "name": "Building A Modbus",
      "type": "MODBUS_IP",
      "enabled": true,
      "host": "192.168.1.100",
      "port": 502,
      "updatePeriodType": "MINUTES",
      "updatePeriods": 1
    }
  ],
  "dataPoints": [
    {
      "xid": "DP_temp_zone1",
      "name": "Zone 1 Temperature",
      "dataSourceXid": "DS_modbus_01",
      "pointLocator": {
        "dataType": "NUMERIC",
        "offset": 0,
        "modbusDataType": "TWO_BYTE_INT_SIGNED"
      }
    }
  ]
}

Importing configuration

Step 1: Prepare the JSON

You can import JSON from several sources:

• A previously exported file from another Mango instance
• A hand-edited JSON file with modified or new configuration
• JSON generated by an external tool or script

Step 2: Load the JSON

On the Import/Export page, paste the JSON into the text area or click Browse to upload a .json file.

Step 3: Review and apply

Click Import to begin processing. Mango validates the JSON and processes each object in dependency order:

1. Permissions and roles
2. Users
3. Data sources
4. Data points
5. Event detectors
6. Event handlers
7. Mailing lists
8. Publishers
9. JSON data
10. System settings

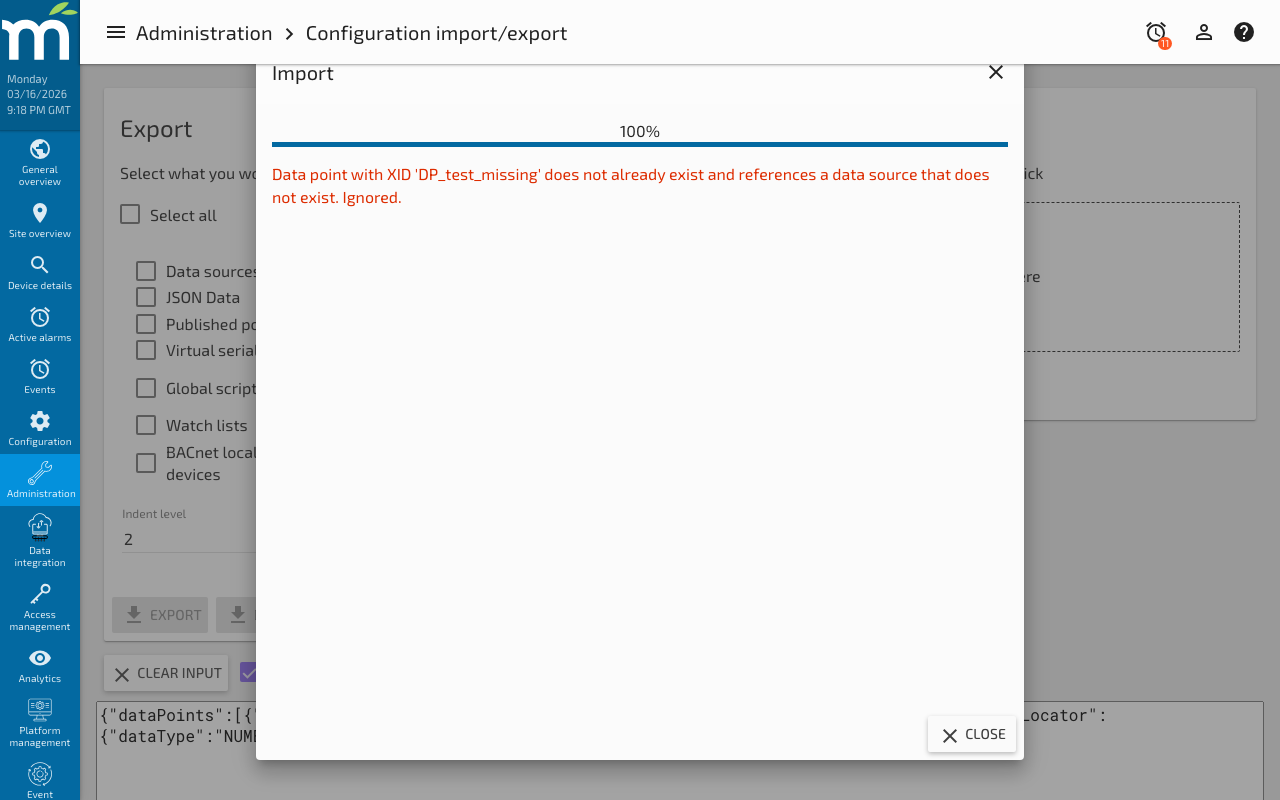

After processing, Mango displays a result summary showing how many objects were created, updated, or failed. Any errors are listed with the specific object XID and a description of the problem.

Common use cases

Migrating configuration between instances

The most common use case is moving configuration from a development or staging instance to production:

1. Export the full configuration from the source instance.
2. Transfer the JSON file to the target system.
3. Import on the target instance.

Mango matches objects by XID, so the target instance will create any objects that do not exist and update any that already do. Data point historical values are not included -- only the configuration.

Backing up configuration

Regular configuration exports provide a safety net against accidental changes or data loss. Unlike database backups, JSON exports are human-readable and can be version-controlled.

Recommended practice:

1. Export the full configuration on a regular schedule (weekly or before major changes).
2. Save the JSON files with timestamps (e.g., mango-config-2026-02-16.json).
3. Store exports in a secure location separate from the Mango server.

Version-controlling configuration in Git

Because the export is plain JSON, you can commit it to a Git repository to track configuration changes over time:

# Export configuration (via REST API)
curl -u admin:admin https://mango-host/rest/latest/json-emport/export \
  -o mango-config.json

# Commit changes
git add mango-config.json
git commit -m "Configuration snapshot: added Building B data sources"
git push

This gives you a full audit trail of who changed what and when, with the ability to roll back to any previous configuration.

Bulk changes via JSON editing

For repetitive configuration changes -- such as renaming 50 data points or changing the polling interval on all Modbus sources -- it is often faster to:

1. Export the relevant objects.
2. Edit the JSON in a text editor or with a script (e.g., Python, jq).
3. Re-import the modified JSON.

For example, to change the polling interval on all data sources:

# Use jq to set all data source polling to 30 seconds
jq '.dataSources[] | .updatePeriodType = "SECONDS" | .updatePeriods = 30' \
  mango-config.json > updated-config.json

Import behavior and conflict resolution

Understanding how Mango resolves conflicts during import prevents unexpected results:

Scenario	Behavior
Object XID exists in target	Object is updated with imported values. Fields not in the import are left unchanged.
Object XID does not exist	A new object is created.
Object references a missing dependency	Import fails for that object. For example, a data point referencing a data source XID that does not exist will not be created.
Duplicate XIDs in the import file	The last occurrence wins.
Import file contains only some object types	Objects of other types are not affected.

Import order matters

Mango processes objects in dependency order, but if you are importing a file that you assembled manually, ensure dependencies are present:

• Data points require their parent data source to exist (either already in the system or included in the same import).
• Event detectors require their parent data point.
• Event handlers that reference detectors require those detectors.

If you are migrating a complete configuration to an empty instance, export and import everything at once to ensure all dependencies are satisfied.

Common pitfalls

Problem	Cause	Solution
"Data source not found for XID" during point import	The parent data source was not included in the import or does not exist on the target	Export and import data sources before (or along with) data points
Points are created but disabled	The imported data source is disabled	Enable the data source after import, or set "enabled": true in the JSON before importing
XIDs collide with unrelated objects	Two different Mango instances generated the same auto-XID	Manually assign unique XIDs before importing. Use a prefix convention like SITE_A_DS_001
Import succeeds but values look wrong	Text renderer or chart renderer not included	Export data points with their full configuration, including renderers
"Permission denied" during import	The importing user lacks admin privileges	Import must be performed by an admin user
Large import times out	Very large configuration file (thousands of objects)	Break the import into smaller batches by object type: data sources first, then points, then detectors

REST API import/export

You can automate import/export operations using the REST API, which is useful for CI/CD pipelines and scheduled configuration backups.

Export via API

curl -u admin:admin \
  "https://mango-host/rest/latest/json-emport/export" \
  -o mango-config.json

Import via API

curl -u admin:admin \
  -X POST "https://mango-host/rest/latest/json-emport/import" \
  -H "Content-Type: application/json" \
  -d @mango-config.json

The API returns a result object with counts of created, updated, and failed objects, along with error messages for any failures.
