Using the SQL Console

The Mango SQL Console provides the ability to directly access the system's relational database for both querying and updating. This facility is provided primarily for troubleshooting or system repair. It is not appropriate for regular use due to the risk of data corruption.

warning

Incorrect SQL statements can permanently corrupt your Mango database. Always create a backup before running UPDATE or DELETE statements. If you are unsure about a query, test it with a SELECT first.

Accessing the SQL Console​

Navigate to Administration > SQL Console in the Mango UI. You must have administrator privileges to access this page.

Only valid individual SQL statements may be submitted. Do not end your statements with ; characters.

To get a list of tables created by your Mango instance, click the Get table list button.

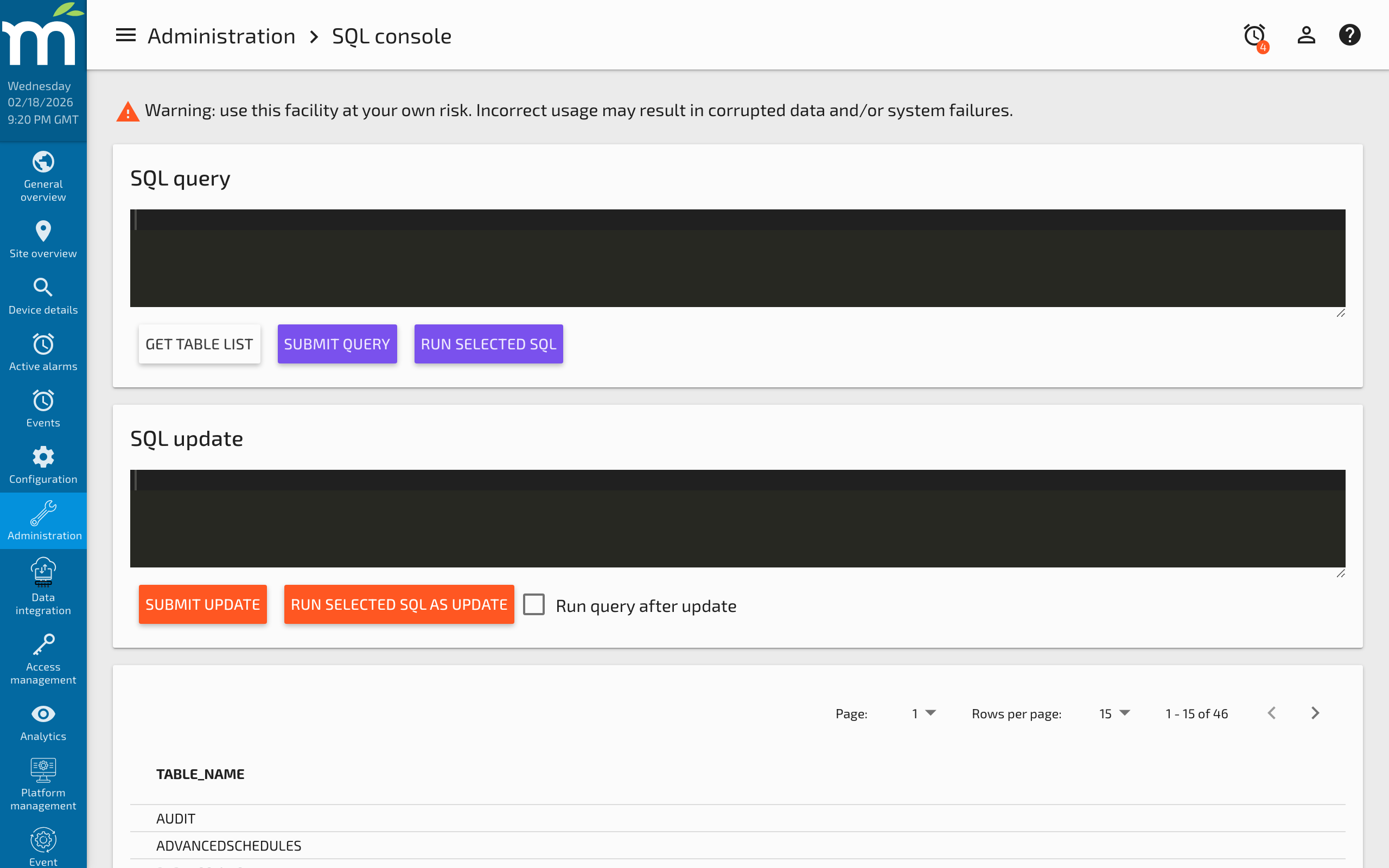

The SQL Console page showing the table list and query input area

Useful SQL Queries​

Counting Records​

Total number of data points:

SELECT COUNT(*) FROM dataPoints

Total number of events:

SELECT COUNT(*) FROM events

Count events by alarm level:

SELECT alarmLevel, COUNT(*) as cnt FROM events GROUP BY alarmLevel ORDER BY alarmLevel

Event Alarm Level Reference​

When examining the events table, the alarmLevel column uses numeric codes:

CodeLevel
-2DO_NOT_LOG
0NONE
1INFORMATION
2IMPORTANT
3URGENT
4LIFE_SAFETY

Examining Data Sources and Points​

List all data sources with their types:

SELECT id, xid, name, dataSourceType FROM dataSources

List data points for a specific data source:

SELECT id, xid, name FROM dataPoints WHERE dataSourceId = 1

Find data points by name pattern:

SELECT id, xid, name FROM dataPoints WHERE name LIKE '%temperature%'

Database Maintenance​

Check database size (H2):

The database size is displayed on the Server Info page, but you can also query table sizes directly.

Purge old events manually:

DELETE FROM events WHERE activeTs < 1609459200000

The timestamp is in milliseconds since epoch (Unix time * 1000). Use an online converter to calculate the desired cutoff date.

Quickly Purge a Large Table​

During database conversion or when you need to clear a very large MySQL table such as pointValues, these steps allow you to do it quickly and efficiently:

  1. Rename the pointValues table to pointValues_old.
  2. Create an empty table with the same structure:
CREATE TABLE pointValues SELECT * FROM pointValues_old LIMIT 0
  1. Drop the pointValues_old table.
danger

This will permanently delete all point value data stored in the SQL database. This does not affect data in the NoSQL time-series database.

Safety Guidelines​

  • Always back up first -- Before running any modifying query, ensure you have a recent backup.
  • Use SELECT before DELETE -- Verify what rows will be affected before deleting them.
  • Avoid modifying internal tables -- Tables like systemSettings, users, and roles have complex relationships. Use the Mango UI or REST API to modify these.
  • Do not modify the schema -- Adding, removing, or altering columns can prevent Mango from starting.
  • NoSQL data is separate -- The SQL Console only accesses the relational database. Point value history stored in the NoSQL module is not accessible here.
