HTTP Sender Publisher

The HTTP Sender publisher sends data point values to an external URL via HTTP requests. Data can be sent every time a data point changes, on every update, or at regular snapshot intervals. The publisher supports both query parameter and JSON payload formats.

Data Formats​

The HTTP Sender can transmit data in two formats:

URL Query Parameters (Text):

jvm=155.0%402020-10-05T16%3A25%3A49.774-04%3A30&point=0%402020-10-05T16%3A25%3A49.774-04%3A30

JSON (POST requests only):

{"jvm":"165.0@2020-10-05T16:19:19.774-04:30","point":"1@2020-10-05T16:19:19.774-04:30"}

Each data point is identified by its configured query parameter name, and the value is formatted as value@timestamp when timestamps are included.

Creating an HTTP Sender Publisher​

Navigate to Administration > Publishers, click New, and select HTTP Sender from the publisher type dropdown.

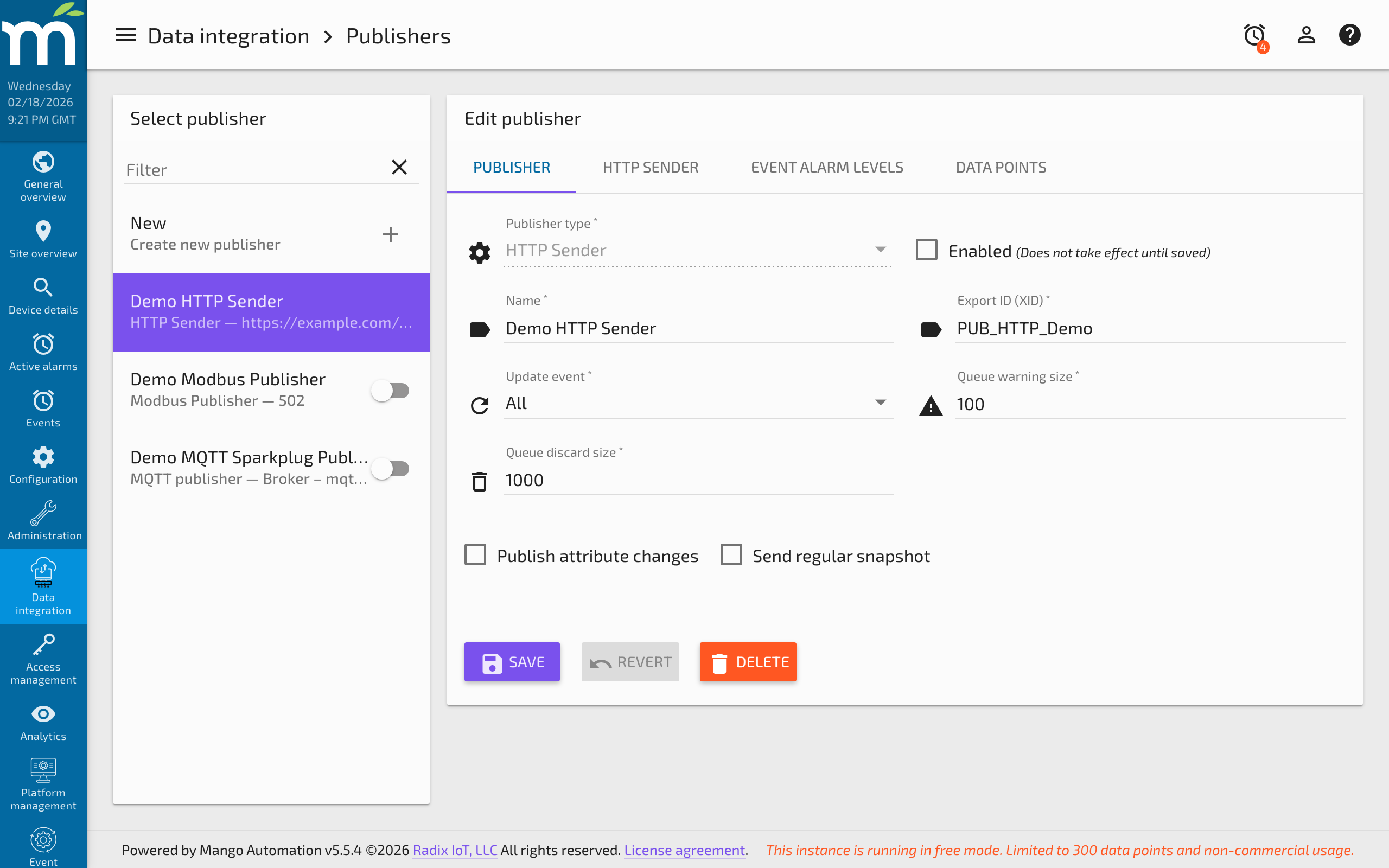

Creating a new HTTP Sender publisher

Common Settings​

Configure the common publisher settings on the main tab:

SettingDescription
Update eventWhen to send point values: All, Changes only, Logged only, or None.
Cache warning sizeRaises a warning alarm when the publish queue exceeds this number of entries.
Cache discard sizeStarts discarding the oldest entries when the queue reaches this size.
Send regular snapshotsWhen enabled, shows the Snapshot send period for configuring periodic value broadcasts.

HTTP Sender Configuration​

Switch to the HTTP SENDER tab to configure the HTTP-specific settings:

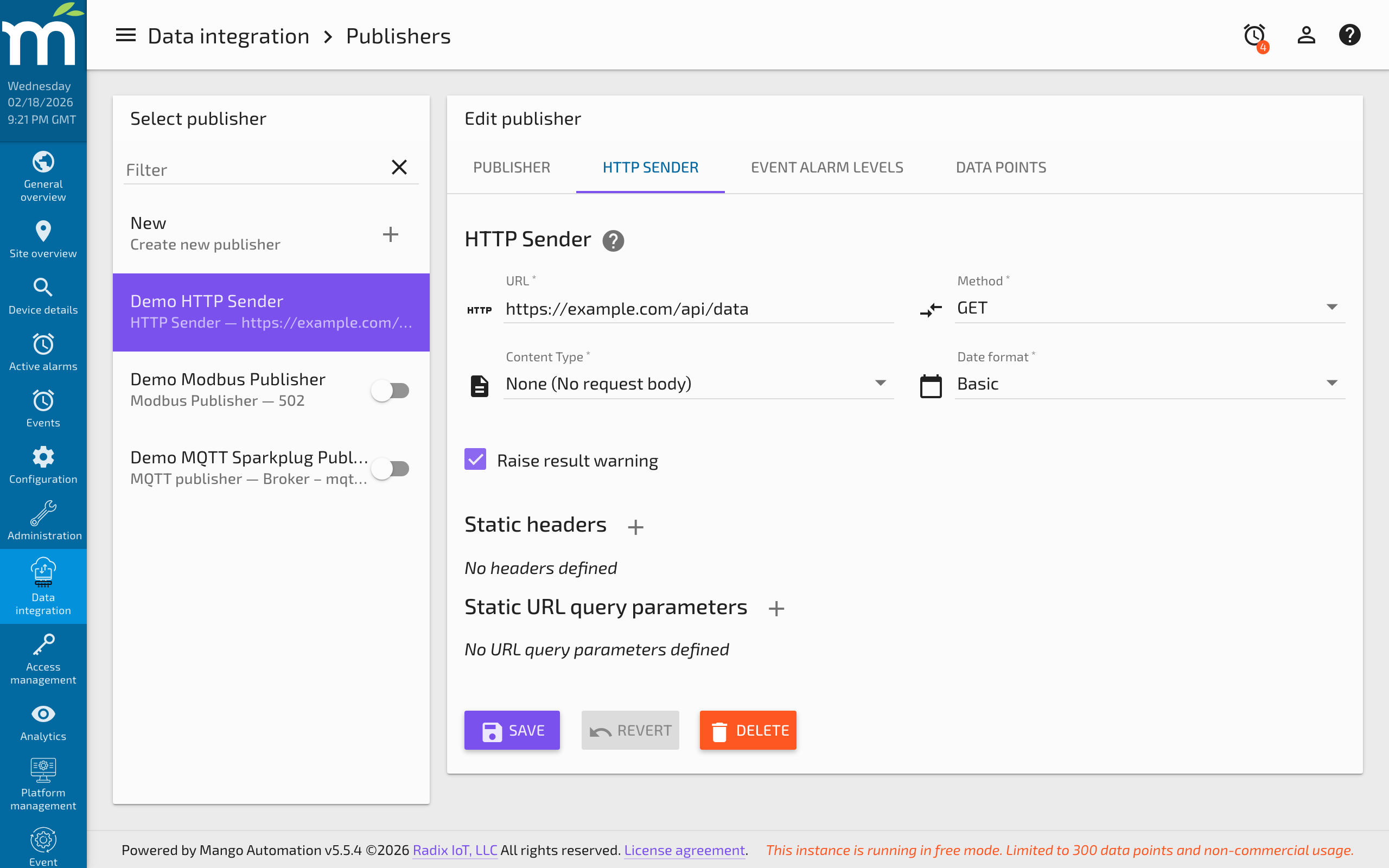

HTTP Sender tab showing URL, method, content type, and header configuration

SettingDescription
URLThe destination URL where data will be sent.
MethodHTTP request method: GET or POST.
Content typeNone (query parameters) or JSON. JSON is only available with the POST method because GET requests do not have a body.
Date formatThe format used for data point timestamps when timestamps are included.
Raise result warningWhen enabled, raises a warning alarm if the HTTP response has a non-successful status code (4xx or 5xx).
Static headersCustom HTTP headers included in every request. Use this for authentication headers (e.g., Authorization: Bearer <token>) or API keys.
Static URL query parametersCustom query parameters appended to every request URL, in addition to the data point values.

Method Selection​

  • GET: Data point values are sent as URL query parameters. Suitable for simple integrations and webhook receivers that accept GET requests.
  • POST: Data can be sent as either query parameters (Content type = None) or as a JSON body (Content type = JSON). POST is preferred for sending larger volumes of data or when the destination expects a request body.

Authentication​

If the destination URL requires authentication, use the Static headers section to add an Authorization header:

  • Bearer token: Authorization: Bearer your-api-token-here
  • Basic auth: Authorization: Basic base64-encoded-credentials
  • API key: X-API-Key: your-api-key-here

Data Points Configuration​

Switch to the DATA POINTS tab to select which data points to publish and configure how each point is represented in the HTTP request.

Data Points tab showing published points with parameter names and timestamp options

For each published point, configure:

SettingDescription
URL query parameterThe identifier used for this point in the JSON payload or query parameter. This is the key name in the key-value pair sent to the destination.
Include timestampWhether to append the timestamp to the point's value in the configured date format.

Practical Example​

To send temperature and humidity data to a REST API endpoint:

  1. Create an HTTP Sender publisher with URL https://api.example.com/data.
  2. Set method to POST and content type to JSON.
  3. Add an Authorization header with your API token.
  4. Add the temperature data point with parameter name temperature.
  5. Add the humidity data point with parameter name humidity.
  6. Enable timestamps with an ISO 8601 date format.

The resulting JSON payload will look like:

{
  "temperature": "72.5@2026-02-16T14:30:00.000-05:00",
  "humidity": "45.2@2026-02-16T14:30:00.000-05:00"
}

Troubleshooting​

  • Connection timeouts: Verify the destination URL is reachable from the Mango server. Check firewall rules and DNS resolution.
  • Authentication failures (401/403): Verify the authentication headers are correct. Check that tokens have not expired.
  • Growing queue: Monitor the queue size. A growing queue indicates the destination is not accepting data fast enough or is unreachable.
  • Non-successful responses: Enable the "Raise result warning" option to generate alarms on 4xx/5xx responses. Check the destination server logs for error details.
